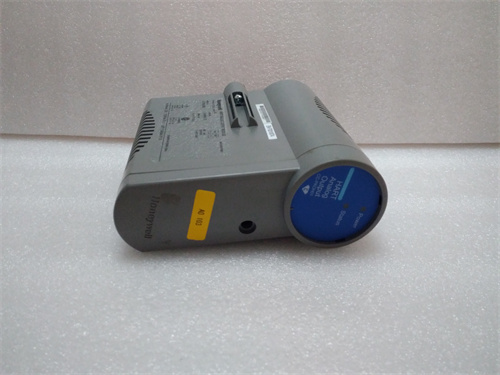

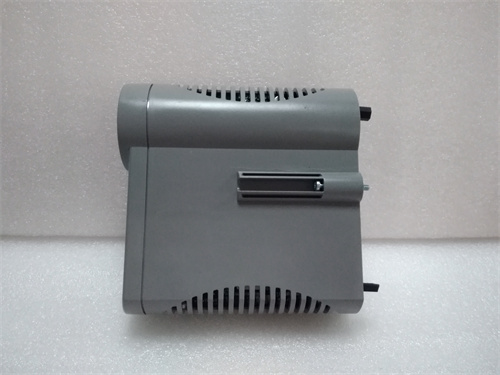

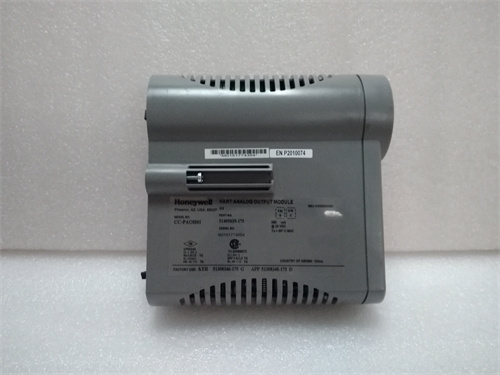

HONEYWELL CC-PAOH01

Description

Product Description
The HONEYWELL CC-PAOH01 is a versatile analog output module from Honeywell’s extensive range of I/O hardware for their Experion Process Knowledge System (PKS) and legacy TDC/TPS distributed control systems. This module serves as a critical interface between the control system’s logic and field-mounted analog actuators. Specifically, the CC-PAOH01 is responsible for converting digital control signals generated by the controller into precise analog current signals, typically the industry-standard 4-20 mA output, used to command devices such as control valves, variable frequency drives (VFDs), and positioning systems. As a high-density I/O card, it allows multiple control loops to be managed from a single hardware slot, optimizing space in the control cabinet. The reliable and accurate performance of the HONEYWELL CC-PAOH01 is fundamental to maintaining stable process control in continuous operations. Integration and configuration of this module are performed within Honeywell’s control engineering environment, ensuring seamless operation within the larger control strategy.

Product Parameters

• Module Type: High-Density Analog Output (AO) Module.
• Compatible Systems: Honeywell Experion PKS (with C Series I/O), TDC 3000, TPS.
• Number of Channels: Typically 8 or 16 analog output channels per module (specific to the CC-PAOH01 variant).
• Output Signal: 4 to 20 mA DC, with support for other ranges like 0-20 mA.
• Resolution: High resolution (e.g., 16-bit) for precise control signal generation.
• Load Capability: Capable of driving loads up to a specified resistance (e.g., 750-1000 Ohms) per channel.
• Accuracy: High accuracy specification (e.g., ±0.1% of full scale) to ensure precise valve positioning.
• Isolation: Channel-to-channel and channel-to-system bus isolation for safety and noise immunity.
• Diagnostics: Built-in diagnostics for module health, channel faults, and loop integrity (e.g., wire break detection).
• Connection: Termination via a removable field wiring terminal block.

Advantages and Features

1. High Channel Density and Space Efficiency: The HONEYWELL CC-PAOH01 consolidates multiple analog output channels into a single module, maximizing I/O point count per hardware slot and reducing the overall footprint of the control system.
2. Exceptional Accuracy and Reliability: Designed for mission-critical process control, this module provides highly accurate and stable analog output signals, which is essential for precise throttling control of valves and drives, directly impacting product quality and process efficiency.
3. Comprehensive Diagnostics and Safety: The module features advanced diagnostic capabilities that monitor its own health and the integrity of each output loop. This proactive monitoring helps prevent unscheduled downtime by alerting operators to issues like output circuit failures or wiring problems.
4. Robust Design for Harsh Environments: Built to industrial standards, the CC-PAOH01 is engineered to operate reliably in conditions with electrical noise, vibration, and wide temperature ranges common in plant environments.
5. Seamless Experion PKS Integration: As a native Honeywell component, the module is fully supported within the Experion engineering and operator environments, allowing for easy configuration, calibration, and monitoring from the central console.

Application Field Cases

• Oil & Gas Refining: Controlling the opening of flow control valves on distillation columns, reactor feed lines, and product blending headers.
• Chemical Processing: Precisely adjusting the speed of agitator drives in reactors or the position of control valves on continuous chemical production lines.
• Pharmaceuticals: Regulating control valves for precise dosing of ingredients in bioreactors or controlling steam valves for sterilization-in-place (SIP) systems.
• Power Generation: Modulating fuel valves, feedwater control valves, and turbine inlet valves in boiler and turbine control systems.

Comparison with Competing Products

• Versus Universal Analog Output Cards: Generic AO cards may offer similar electrical specifications, but the HONEYWELL CC-PAOH01 is optimized for deep integration with Honeywell’s control algorithms, diagnostics, and asset management tools (like Experion’s Asset Management), providing a higher level of system-wide functionality.
• Versus Older Generation Honeywell AO Modules: The CC-PAOH01, particularly for Experion C Series I/O, typically offers higher channel density, better diagnostics, and improved performance compared to legacy modules from earlier system generations like TDC2000.
• Versus Other DCS Vendors’ AO Modules (e.g., Emerson, Yokogawa, ABB): Each DCS platform has its own proprietary I/O modules. The primary advantage of the CC-PAOH01 is its guaranteed performance, full warranty, and simplified engineering lifecycle when used within its native Honeywell Experion system, avoiding potential integration and support complexities.

Selection Suggestions and Precautions

1. Verify System and I/O Series Compatibility: Ensure the CC-PAOH01 is compatible with your specific Honeywell system (Experion, TPS, TDC) and the correct I/O series (e.g., C Series I/O for Experion). Using an incompatible module can cause system faults.
2. Accurate Channel Count and Specification Confirmation: Confirm the exact number of channels and the specific output signal ranges (4-20mA, etc.) for the CC-PAOH01 variant you are selecting to meet your application requirements.
3. Proper Load Calculation: Verify that the field device (e.g., valve positioner) connected to each channel does not exceed the module’s maximum load drive capability (specified in ohms). Overloading a channel can cause inaccurate output or module damage.
4. Understand Wiring and Grounding Practices: Follow Honeywell’s installation guidelines meticulously. Use proper shielded cabling for analog signals, ensure correct grounding to avoid ground loops, and connect to the designated terminal block.
5. Software Configuration is Mandatory: The module must be correctly configured within the Honeywell Control Builder software. This includes defining channel parameters, alarm limits, and fail-safe output states (e.g., hold last value or go to a predefined safe value).
6. Source from Authorized Suppliers: To ensure authenticity, reliability, and access to firmware updates and technical support, purchase the HONEYWELL CC-PAOH01 module from authorized Honeywell distributors or directly from Honeywell. Counterfeit or used modules can pose significant risks to system integrity and safety.
