GE+IC697CPM790

Description

The GE IC697CPM790 is a programmable logic controller (PLC) module that is part of GE’s 90-30 series. Below is a product overview, description, parameters, and specifications.

Product Name:

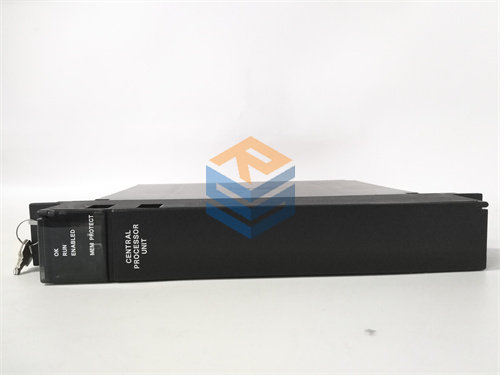

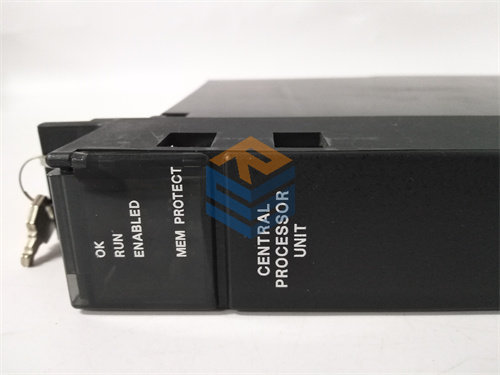

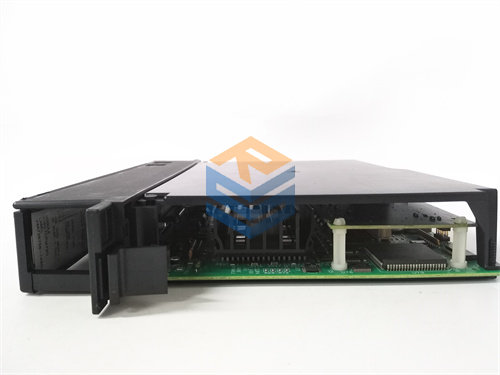

GE IC697CPM790 – CPU Module

Product Description:

The GE IC697CPM790 is a high-performance central processing unit (CPU) module designed for use in the GE Fanuc 90-30 series of programmable logic controllers. This CPU module is capable of handling complex control and automation applications and supports a wide range of I/O modules to expand its functionality. The IC697CPM790 features advanced processing capabilities, communication options, and programming features that make it suitable for a variety of industrial and manufacturing applications.

Product Parameters:

• Processor Type: 32-bit RISC processor
• Operating System: GE Fanuc custom OS
• Battery Backup: Supports battery backup for memory retention
• Memory:
  • User Memory: 128 Kbyte (expandable)
  • Battery-backed Memory: 128 Kbyte
• Programming Language: Ladder Logic, Function Block Diagram, Structured Text
• Programming Software: Supported by GE’s Logic Developer and other compatible software

Specifications:

• Power Supply Requirement:
  • Input Voltage: 5V DC
  • Power Consumption: Approximately 1.5 Amps
• Dimensions:
  • Height: 10.5 in (26.67 cm)
  • Width: 3.6 in (9.14 cm)
  • Depth: 5.0 in (12.7 cm)
• Mounting Type: Rack-mounted with a modular design
• Communication Ports:
  • One (1) RS-232C serial port
  • One (1) 10/100 Ethernet port for networking
• Operating Temperature Range:
  • 0°C to 60°C (32°F to 140°F)
• Storage Temperature Range:
  • -40°C to 85°C (-40°F to 185°F)
• Humidity Range:
  • 5% to 95% non-condensing
• EMI/RFI Protection: Complies with CE and FCC regulations

Key Features:

• Supports MODBUS Master/Slave protocol for communication with other devices
• Integrated diagnostics for troubleshooting and monitoring
• Extensive LED indicators for system status and I/O activity
• Scalability to support additional I/O modules and expansion
