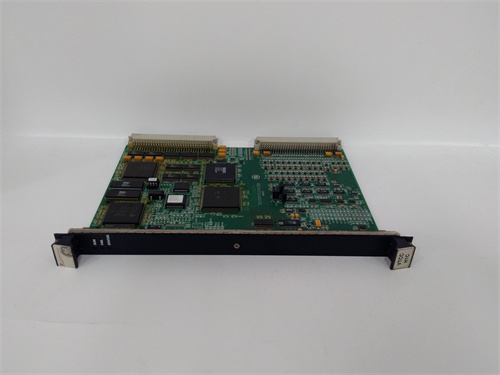

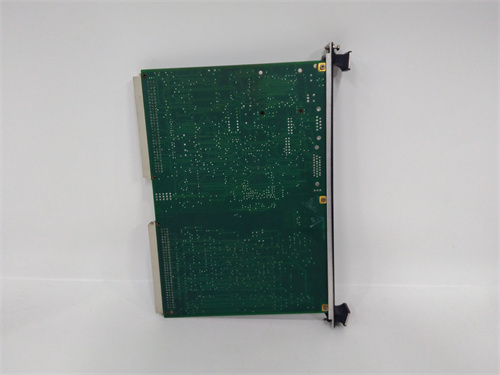

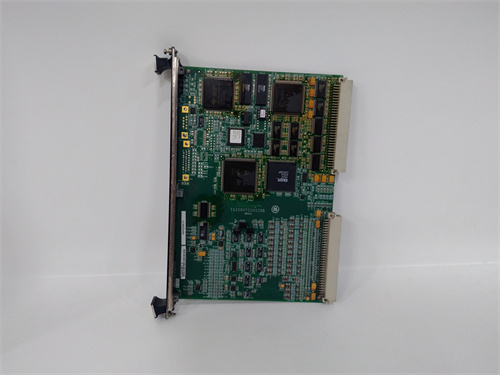

GE IS200VTCCH1CBB

Description

GE IS200VTCCH1CBB is a specialized Voltage and Temperature Control module for the GE Mark VIe gas/steam turbine control system. Detailed technical information for this board can be accessed through the official product link. This module is a key interface within the turbine control drive, handling critical signals related to generator voltage regulation and temperature monitoring.

Product Description

The GE IS200VTCCH1CBB is a multifunctional control and interface board. Its primary roles are to process signals related to generator excitation control (voltage) and to interface with temperature sensors, such as Resistance Temperature Detectors (RTDs) and thermocouples. The module serves as a vital link between the turbine’s Mark VIe controller and the devices that monitor the health and performance of the generator and other hot gas path components. The robust design of the IS200VTCCH1CBB ensures reliable operation in the harsh electrical and thermal environment of a power generation facility. Integrating the GE IS200VTCCH1CBB module is essential for closed-loop control of generator voltage and for providing accurate temperature data used in performance calculations and protection algorithms. The specific part number ending in CBB indicates a particular hardware revision or configuration of this GE voltage and temperature control card.

Product Parameters

• Function: Voltage & Temperature Control / Input Module
• Compatible System: GE Mark VIe Turbine Control System
• Voltage Inputs: Accepts signals related to generator stator voltage and potential transformer (PT) inputs for voltage regulation.
• Temperature Inputs: Multiple channels for direct connection to RTDs (e.g., 100 Ohm Platinum) and/or thermocouples (e.g., Type J, K).
• Signal Conditioning: Includes isolation, filtering, and amplification for accurate measurement of low-level analog signals.
• Control Outputs: Likely provides output signals or logic for interfacing with the Automatic Voltage Regulator (AVR) or excitation system.
• Communication: Interfaces with the Mark VIe controller via the high-speed VME backplane within the drive.
• Diagnostics: Onboard diagnostics for fault detection on input channels.
• Power: Powered from the Mark VIe drive rack.

Advantages and Features

The key advantage of the GE IS200VTCCH1CBB is its integration of two critical monitoring functions—voltage and temperature—into a single, system-optimized module. Its features include high-precision analog input circuitry for accurate sensor measurement, which is vital for efficient turbine operation and protection. The module’s design incorporates significant noise immunity to maintain signal integrity near high-power electrical equipment. By combining these functions, the IS200VTCCH1CBB reduces slot count in the controller rack, simplifying system design and spare parts inventory. Its tight integration with the Mark VIe control algorithms ensures deterministic performance for both monitoring and fast control loops.

Application Cases in Application Fields

This module is exclusively used in turbine-generator control applications.

• Gas Turbine Power Generation: In a combined-cycle plant, the IS200VTCCH1CBB module reads generator output voltage for the AVR loop and monitors critical RTDs on generator bearings and stator windings to prevent overheating damage.
• Steam Turbine Control: For industrial or utility steam turbines, the module processes temperature signals from turbine shell metal, valve stems, and bearing oils, while also handling voltage feedback for the synchronized generator.
• Generator Excitation Control: The module forms a fundamental part of the voltage regulation system, providing the controller with the necessary feedback to adjust field excitation and maintain stable grid voltage.

Comparisons with Competing Products

Compared to standard PLC analog input modules, the GE IS200VTCCH1CBB is a proprietary component of a highly specialized safety-critical control system. Its direct competitors are similar cards from other turbine control OEMs like Woodward or Siemens. The IS200VTCCH1CBB is distinguished by its pre-engineered application-specific design, which includes dedicated circuitry for PT inputs and temperature sensor types common in power generation. It is not a general-purpose device; its hardware and firmware are optimized for the exact requirements and communication protocols (e.g., PDH bus) of the GE Mark VIe system, offering superior performance and reliability for its intended niche compared to a configurable universal module.

Selection Suggestions and Precautions

1. Dedicated System Component: The GE IS200VTCCH1CBB is only for use in the GE Mark VIe system. It is not compatible with other GE PLC platforms (e.g., RX3i, Series 90-30) or non-GE systems.
2. Exact Part Number Match: The suffix (CBB) is critical. When sourcing a replacement, the exact part number must match the original to ensure hardware compatibility, correct firmware, and calibration. Consult the product link and system documentation.
3. Configuration and Calibration: The module’s operation is dependent on the drive’s configuration. Replacement modules may need specific configuration files loaded via the ToolboxST engineering software. Sensor scaling and type (RTD curve, thermocouple type) must be correctly configured.
4. High-Voltage Interface Caution: The voltage input channels are designed to interface with potential transformers (PTs) that step down high generator voltage. Installation and wiring must adhere to all electrical safety codes and practices for medium-voltage systems.
5. Legacy & Support: The Mark VIe is a current platform, but specific board revisions may become obsolete. Verify the long-term availability and support strategy for this specific IS200VTCCH1CBB module from GE or authorized distributors.
