BENTLY 3500/94 145988-01

Description

Introduction and Product Overview

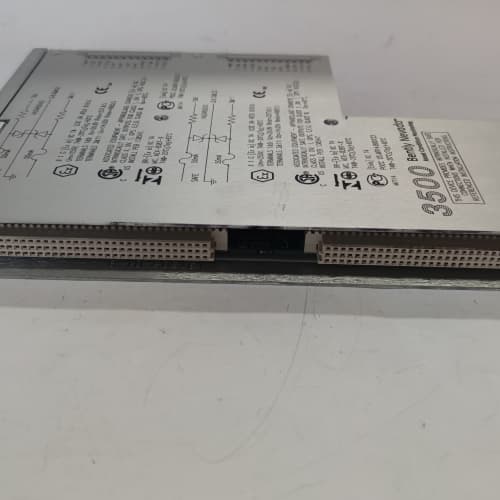

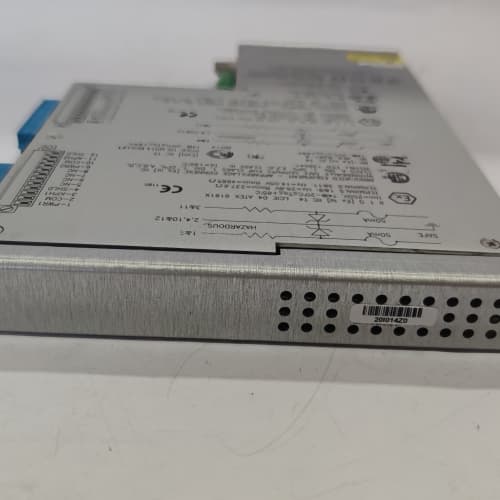

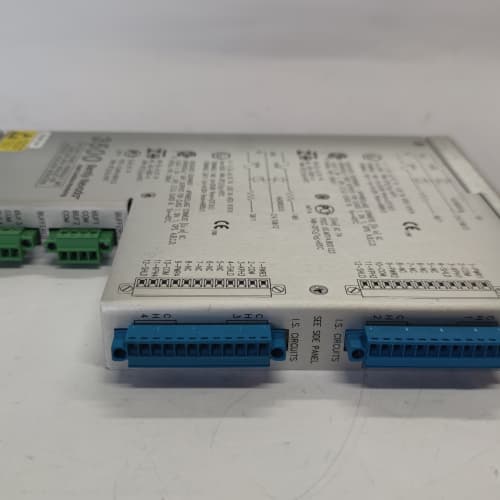

The BENTLY 3500/94 (Part No. 145988-01) is a Quad Linear/Velocity Relay Module for the Bently Nevada 3500 Machinery Protection System. This module is a dedicated protection device, not a standard PLC I/O card, designed to monitor vibration and speed signals and provide automatic shutdown commands for critical rotating equipment. The primary function of the 3500/94 is to accept conditioned signals from proximity probes (for radial vibration and speed) or velocity transducers, compare them against user-configured alarm and danger setpoints, and activate its relay outputs to initiate a machine shutdown or alert operators when those setpoints are exceeded. It is a fundamental safety component for turbines, compressors, pumps, and fans. For configuration and safety guidelines, the official Bently Nevada 3500 System Manual for the 3500/94 module is essential.

Technical Parameters and Characteristics

The 3500/94 relay module is defined by its input channels and voting logic:

• Function: 4-Channel Vibration/Speed Monitor with Voting Logic.
• Input Signals: Accepts four independent inputs from 3500/15 (Proximitor) or 3500/25 (Velocity) monitor modules via the 3500 rack backplane. Each channel typically monitors:
  • Radial Vibration (X & Y direction)
  • Axial Position
  • Speed (Keyphasor®)
• Voting Logic: The module’s key feature is its configurable 2-out-of-4 (2oo4) or other voting logic. This means a trip output is only generated if a specified number of channels (e.g., 2 out of the 4) exceed their setpoints, preventing a single sensor failure from causing a spurious, costly shutdown.
• Relay Outputs: Provides dedicated relay outputs for Alarm and Danger (Trip) conditions for each of the four channels, plus system relays.
• Configuration: Setpoints, delays, and voting logic are configured using the 3500 Rack Configuration Software connected to the system’s Communication Module (e.g., 3500/92).
• Display: Features a front-panel display for showing channel status, values, and setpoints.

Key Advantages and Features

The design of the BENTLY 3500/94 offers critical advantages for reliable machinery protection:

1. Enhanced Safety with Voting Logic: The configurable 2oo4 voting logic is its most significant safety feature. It ensures that a genuine machine fault (indicated by multiple sensors) triggers a shutdown, while a single-channel failure (a “false” signal) does not, maximizing both machine protection and plant availability.
2. High-Density Monitoring: Consolidating relay logic for four critical protection channels into a single slot optimizes rack space and simplifies the protection scheme for machines with multiple measurement points.
3. Clear Diagnostics and Display: The front-panel display allows maintenance personnel to view real-time values, setpoints, and channel status at the rack without need for a connected computer, enabling rapid health checks and troubleshooting.
4. Seamless System Integration: As a native component of the 3500 system, the 3500/94 shares data seamlessly with other monitoring modules and the communication gateway, providing a unified view of machine health and protection status to the plant DCS or monitoring software.

Application Cases in Various Fields

This module is used in the protection systems of critical rotating assets across heavy industry:

• Power Generation (Gas & Steam Turbines): Providing voted trip logic for turbine bearing vibration and overspeed protection.
• Oil & Gas: Protecting centrifugal and axial compressors in refineries, LNG plants, and pipeline stations.
• Petrochemicals: Monitoring large reactor feed pumps and critical cooling tower fans.
• Hydroelectric Plants: Providing protection for generator bearings and turbine shafts.

Comparison with Competing Products

The BENTLY 3500/94 competes with similar voting relay modules from other machinery protection system vendors:

• EPRO (now Baker Hughes) MMS 6000 sequence/trip modules.
• Vibro-Meter MPC4 voting and logic modules.
• Rockwell/Allen-Bradley GuardPLC safety controllers used in protective functions.
  Bently Nevada’s 3500 system, and by extension the 3500/94 module, is often considered the industry benchmark for high-criticality turbine protection, known for its robustness, comprehensive voting options, and global installed base.

Selection Suggestions and Precautions

Implementing and maintaining this protection module requires a rigorous, safety-focused approach:

1. Safety System Design Required: The use of a 3500/94 must be part of a formally designed safety instrumented system or protective system. The voting logic (e.g., 2oo4) must be determined by a safety analysis (e.g., API 670 guidelines) based on the criticality of the machine.
2. Correct Configuration is Critical: The voting logic, setpoints, and time delays must be meticulously configured and documented. Incorrect configuration can lead to either a failure to protect (dangerous) or a spurious trip (costly).
3. Bypass Management: Any work on the module or its sensors requires a formal management of change (MOC) and bypass procedure. The protective function must be formally bypassed and the machine operation carefully monitored during maintenance.
4. Regular Functional Testing: The entire loop, from sensor to the 3500/94 relay output, should be tested at regular intervals using calibrated test equipment to verify the setpoints and voting logic operate as intended. This is often a regulatory requirement.
5. Use of Genuine Parts: For system integrity and certification, always use genuine Bently Nevada replacement modules. The 3500/94 (145988-01) is a critical safety component.
