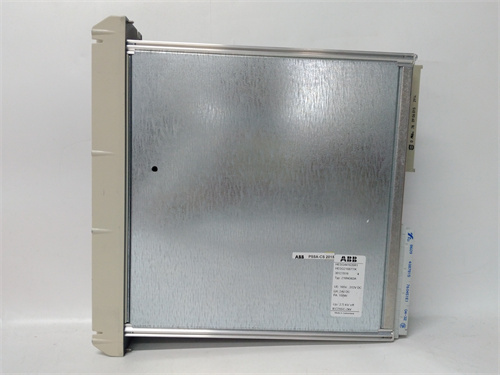

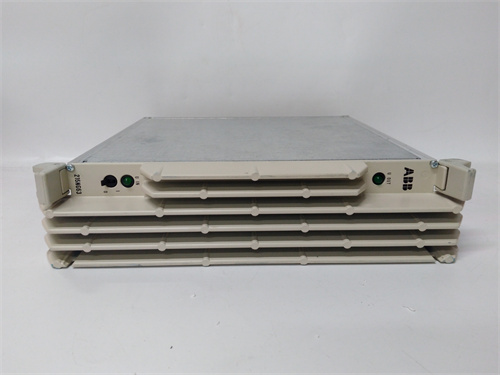

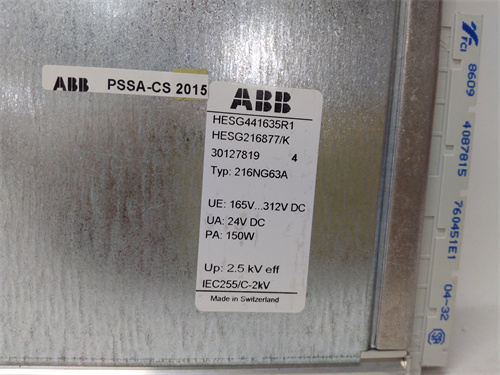

ABB 216NG63A HESG441635R1 HESG216879/K

Description

Introduction and Product Overview

The ABB 216NG63A (with associated order codes HESG441635R1 and HESG216879/K) is a Relay Test Module or a Power Supply/Interface Module for the ABB REL 5xx series of numerical protection relays (e.g., REL 511, REL 516, REL 531). This device is a critical service and testing component, not a standard PLC spare part, but an essential tool for the maintenance and commissioning of high-voltage protection systems in substations. The primary function of the 216NG63A is to provide a standardized, safe interface for connecting secondary injection test equipment to the relay. It facilitates the precise testing of protection functions by routing test currents and voltages to the correct relay terminals while ensuring electrical isolation and safety for the technician. For detailed test procedures, the official ABB REL 5xx Service Manual referencing the 216NG63A module is essential.

Technical Parameters and Characteristics

The 216NG63A test module is defined by its interface and safety functions:

• Function: Test Interface / Power Supply Module for REL 5xx Protection Relays.
• Compatibility: Designed specifically for a range of ABB REL 5xx line distance, differential, or overcurrent protection relays mounted in their specific cases or racks.
• Physical Interface: Provides a set of test sockets or terminal blocks that replicate the relay’s current (I), voltage (V), and binary input/output connections in a safe, accessible manner for test leads.
• Key Components: May include:
  • Test Switches: To safely isolate the relay from the live CT/VT circuits in the substation and connect it to the test set.
  • Shorting Facilities: For short-circuiting current transformer (CT) secondary circuits when the relay is withdrawn for maintenance, preventing open-circuit CT conditions.
  • Auxiliary Power Supply: May provide the required DC supply voltage (e.g., 48/110/220 VDC) to the relay during testing.
• Integration: Mounts directly onto or within the relay panel, forming part of the overall assembly. The codes HESG441635R1 and HESG216879/K likely refer to specific kit versions, including cables, connectors, or mounting hardware.

Key Advantages and Features

The design of the ABB 216NG63A module offers significant advantages for protection system maintenance:

1. Enhanced Testing Safety and Standardization: The module provides a clear, foolproof interface for testing, minimizing the risk of incorrect connections that could damage sensitive relay circuitry or create safety hazards with live CT circuits. It standardizes the test point layout across different relay models.
2. Improved Testing Efficiency: By bringing all necessary test points to a single, accessible location, the 216NG63A dramatically reduces the time required to set up for periodic relay testing or commissioning, increasing substation maintenance productivity.
3. Protection of Primary Equipment: Its integrated test switches and shorting mechanisms ensure that the primary Current Transformers (CTs) and Voltage Transformers (VTs) are never accidentally opened or mishandled during relay maintenance, which is critical for personnel safety and equipment protection.
4. Relay Power Integrity: By providing a dedicated, clean auxiliary power connection for testing, it ensures the relay operates correctly during the test sequence, independent of the panel’s main supply. Proper use of the 216NG63A is a cornerstone of reliable protection system maintenance.

Application Cases in Various Fields

This module is used in electrical transmission and distribution substations worldwide:

• Utility Substations: For the routine functional testing of distance (REL 511) or differential (REL 316) protection relays on transmission lines.
• Industrial Power Distribution: Testing overcurrent and earth-fault protection relays (e.g., REL 5xx) on incoming feeders and transformers in large factories, steel mills, or data centers.
• Renewable Energy Plants: Commissioning and maintaining protection relays in solar farm or wind turbine collector substations.
• Railway Electrification: Testing protection systems for AC traction power supply.

Comparison with Competing Products

The ABB 216NG63A competes with similar test interface modules from other protection relay manufacturers:

• Siemens (SIPROTEC) test plugs and interface units.
• GE (Multilin) test switches and modules.
• SEL (Schweitzer Engineering Labs) test access blocks.
  Its key advantage is its custom, plug-and-play compatibility with the specific mechanical and electrical design of the ABB REL 5xx relay family. While universal test blocks exist, the 216NG63A is engineered to match the exact terminal layout, pinout, and safety requirements of the ABB relay, ensuring a perfect fit and validated performance.

Selection Suggestions and Precautions

Working with this module requires strict adherence to electrical safety standards (e.g., IEC 61850-5, local safe work practices):

1. Exact Relay Compatibility: The 216NG63A is model-specific. Verify the exact ABB relay type (e.g., REL 516, hardware version) it is intended for. Using it with an incompatible relay can result in poor connections or damage.
2. Follow a Rigorous Safety Protocol: Testing protection relays involves work on or near live primary equipment. Always implement a detailed switching plan, use appropriate personal protective equipment (PPE), and follow lock-out/tag-out (LOTO) procedures for the associated high-voltage circuit.
3. Secondary Injection Testing Expertise: Personnel must be trained in the principles of secondary injection testing and the use of modern relay test sets. The 216NG63A is merely an interface; correct test procedures and interpretation of results are paramount.
4. Inspect Before Use: Before each use, inspect the 216NG63A module and its test leads for any signs of physical damage, corrosion, or worn contacts to ensure reliable and safe connections.
5. Documentation: Maintain detailed records of all tests performed, including test settings, results, and the specific 216NG63A module used, as part of the relay’s maintenance history.
